Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

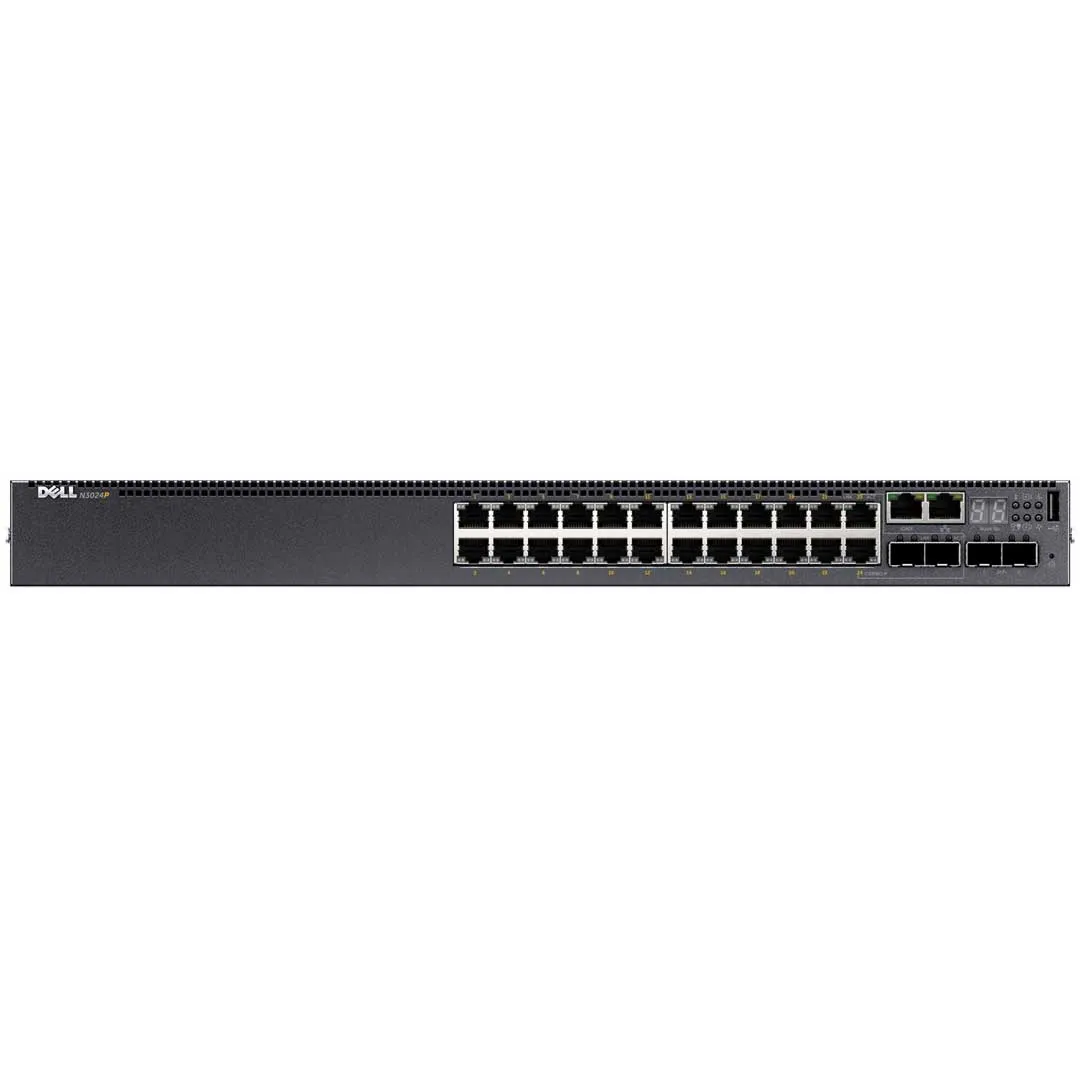

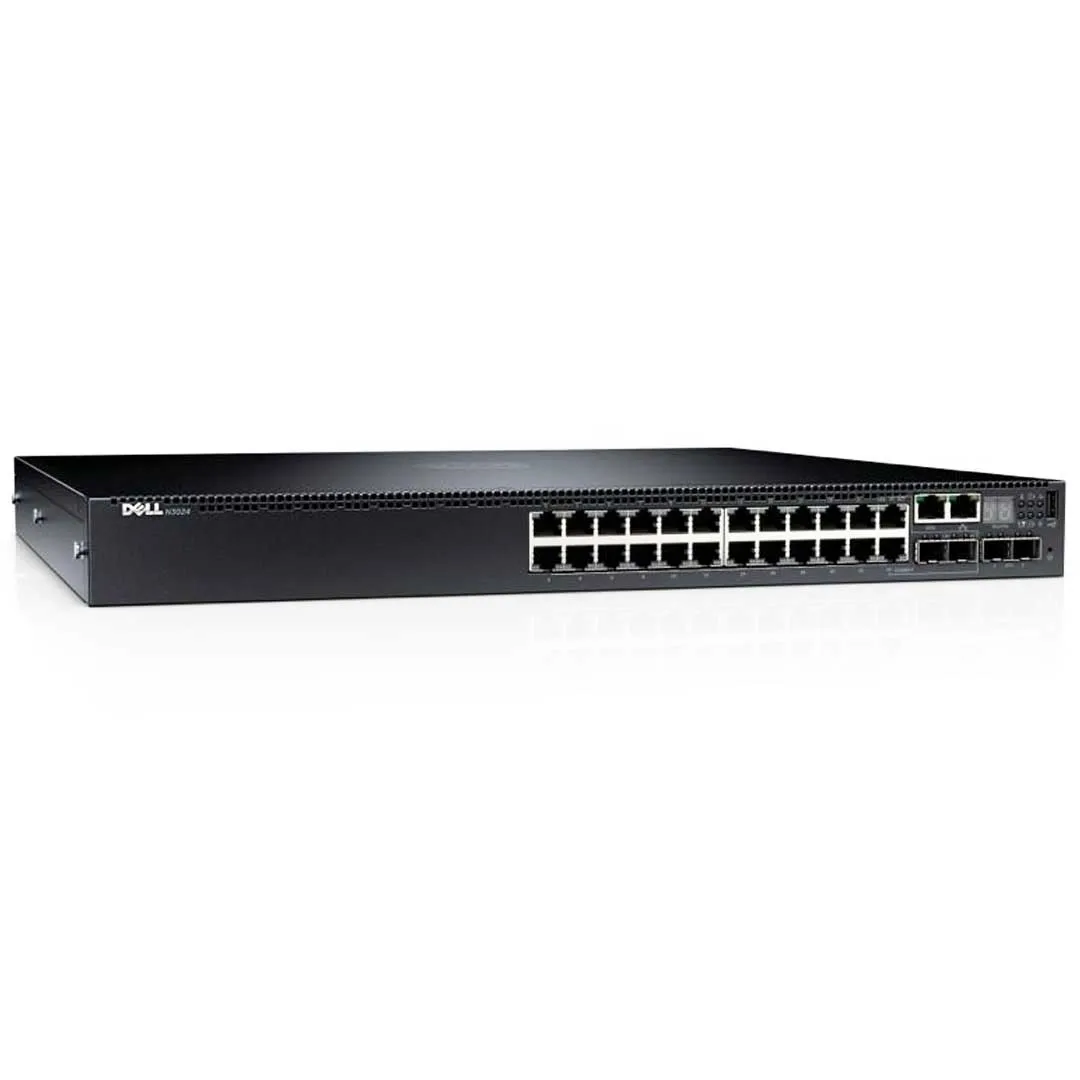

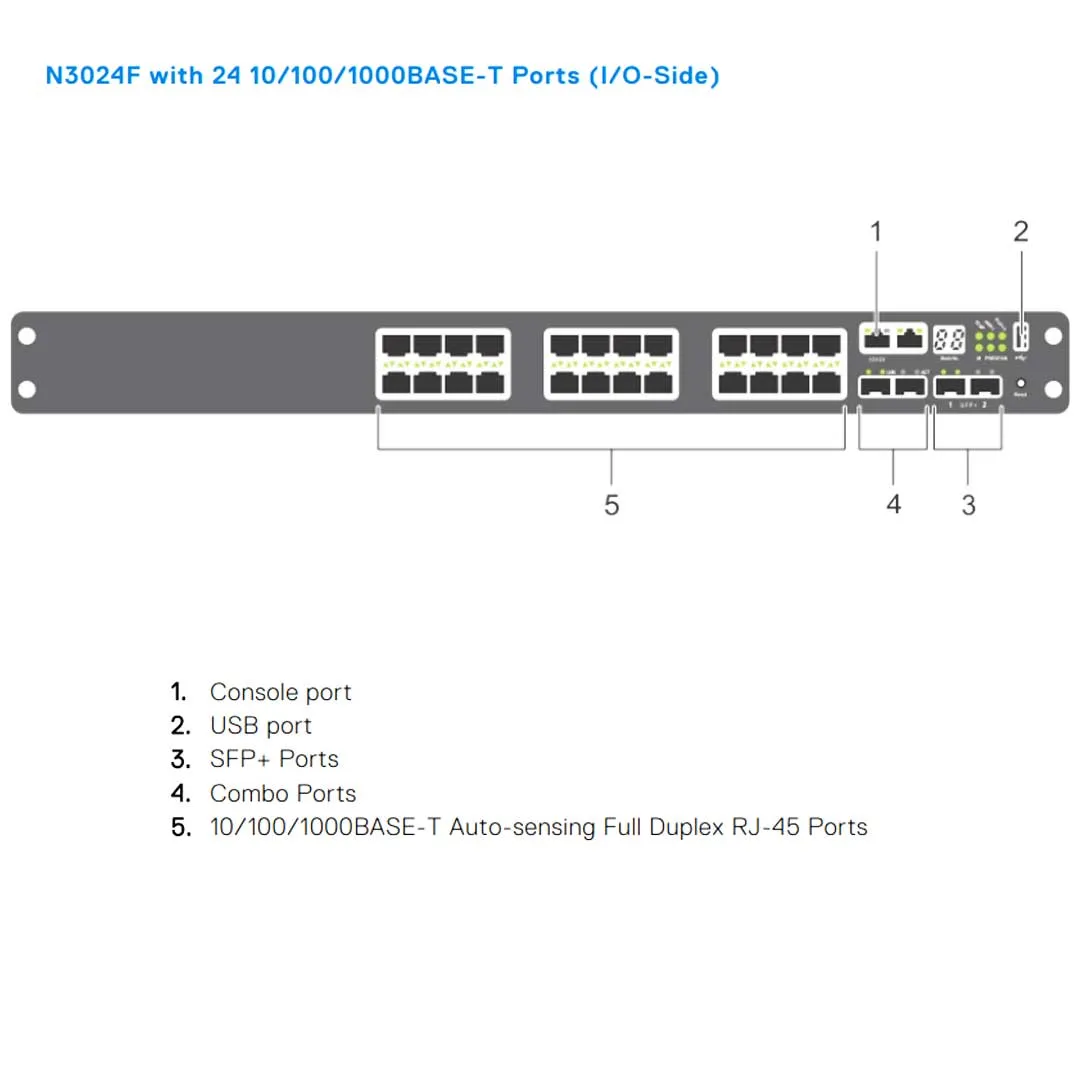

The N3024P I/O-side provides 24 Gigabit Ethernet (10/100/1000BASE-T) RJ-45 ports that support auto-negotiation for speed, flow control, and duplex. The N3024/N3024P models support two SFP 10G ports. Dell-qualified SFP transceivers are sold separately.
The N3000 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address. Note: With OS 6.5.1.x and higher, max stack for N3000 series is 8; however, N3000E series and N3132PX-ON support max stack of 12 members. N3000 series can be stacked with N3000E series; however, stack size is limited to 8 and active VLANs to 1024.
N3024P Features:
- 24 RJ45 Poe Ports
- 2 integrated front 10GbE SFP dedicated ports
- Two GbE combo media ports for copper or fiber flexibility

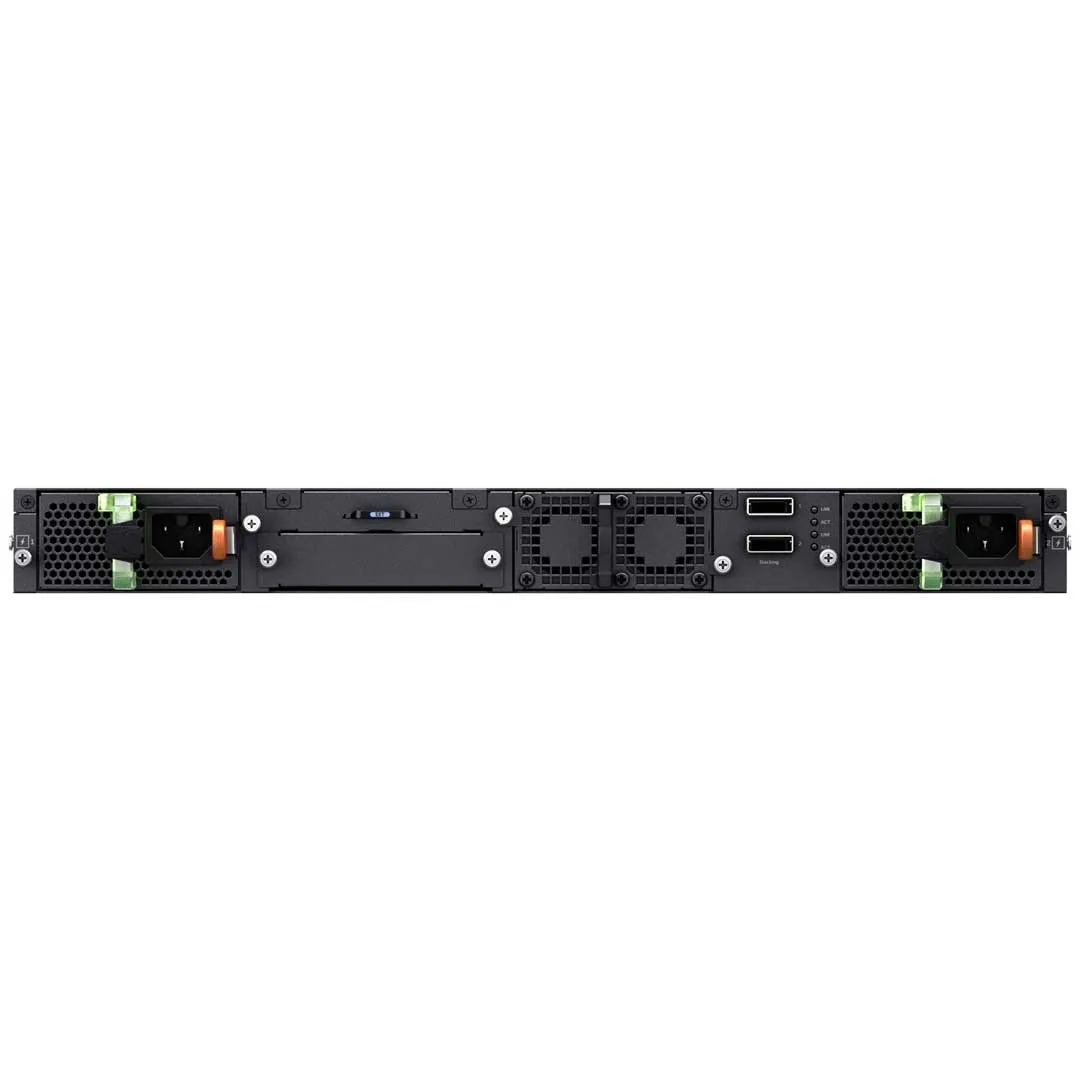

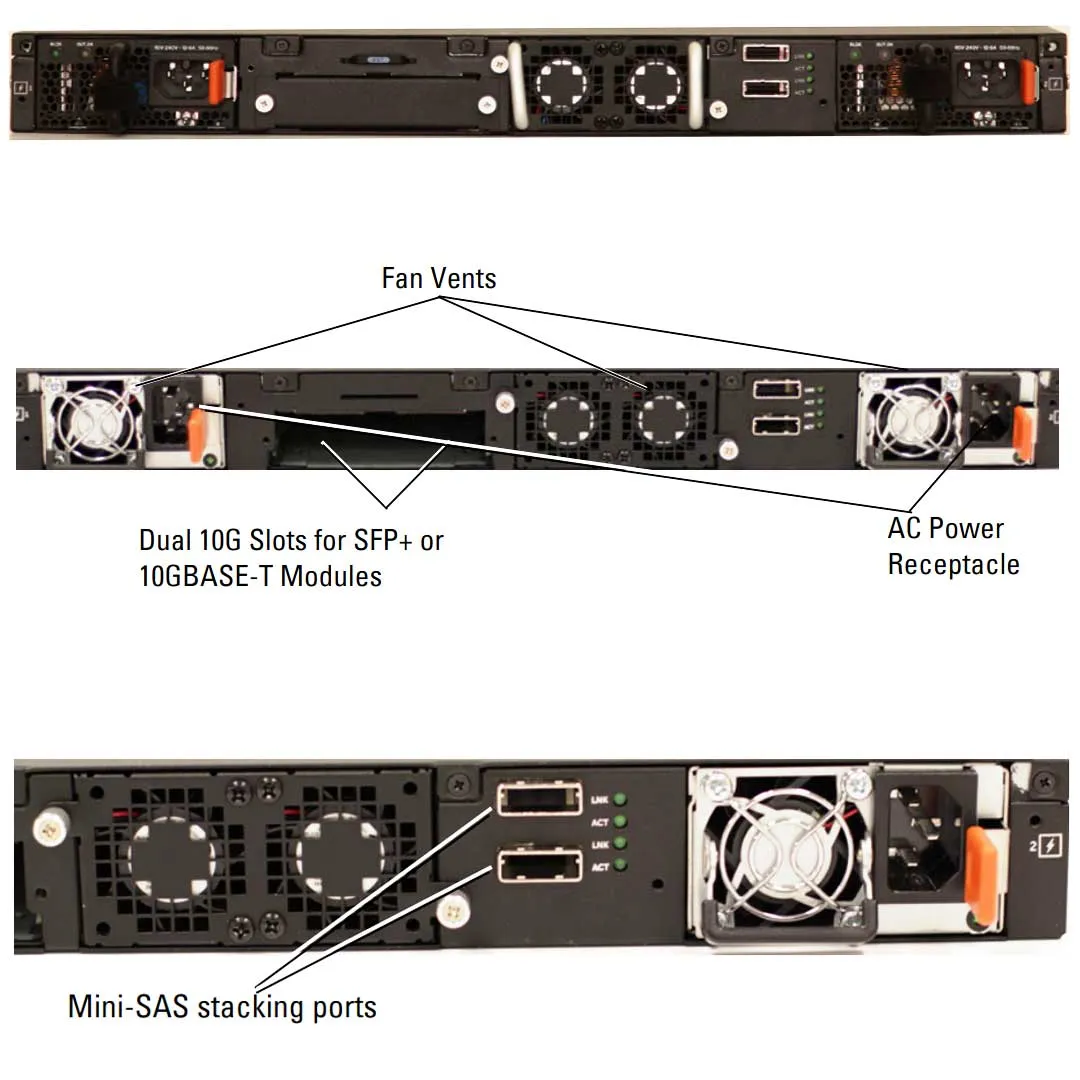

- 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
- 1x hot swap expansion module bay (Default comes with blank)
- Options:
- 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
- 2-port 10 Gigabit SFP hot swappable uplink module
- 1x 715W PSU included (requires C15 plug)
(1100W AC hot swappable, adds upgrade N3024P )- Power Cord Options:
- C15 to NEMA 5-15, 2M (C15 for POE N-Series only)
Performance
- MAC addresses: 32K
- Comes with Auto-MDI/MDIX
- Static routes: 1,024 (IPv4)/1,024 (IPv6)
- Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
- Switch fabric capacity: 212Gbps (full duplex)
- Forwarding rate:158Mpps
- Line-rate Layer 2 switching: All (non-blocking)
- Line-rate Layer 3 routing: All (non-blocking)
- Flash memory: 256MB
- VLAN routing interfaces: 128
- VLANs supported: 4,094
- Max VLAN interfaces with ACLs applied: 24
- Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.
Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE ) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE , or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST and devices using CDP.
